Tributech vs. Optical Data Diodes — Cross‑Domain Data Transfer & Security

Many organizations need to exchange operational and business data across networks of differing trust levels (e.g., plant to enterprise, enterprise to partner, on‑premise to cloud). Traditional optical data diodes provide strong one‑way separation, but they constrain modern, policy‑driven data sharing and add significant integration overhead. Tributech delivers a zero‑trust, cryptographically enforced, bidirectional cross‑domain data exchange with fine‑grained control, verifiable integrity, and comprehensive governance, achieving both higher usable security and lower total cost of ownership than diode‑based approaches for most enterprise, industrial, and partner‑to‑partner scenarios.

If you require modern protocols, acknowledgements, selective data release, revocation, provenance, and governed collaboration across domains, Tributech provides broader capability and assurance than an optical data diode, while retaining strong security guarantees.

Business Context & Problem

Organizations today need to transfer data between domains that have different risk levels while ensuring that there is no lateral movement, data leakage, or loss of integrity. Modern use cases such as predictive maintenance, partner KPI tracking, digital twins, regulatory reporting, and AI/ML applications require data to be shared selectively and in an auditable way. These processes often involve feedback loops, changing consent conditions, and the need for near-real-time reliability.

While data diodes can enforce a one-way data flow at the physical layer and mitigate certain risks, they also disrupt bidirectional communication protocols. This disruption forces the conversion of data streams and pushes complexity into fragile application gateways, ultimately increasing both operational risk and cost.

Optical Data Diodes: Strengths and Limitations

Strengths

• Physically enforces one‑way flow; strong mitigation for backflow/command injection.

• Simple threat model for strictly unidirectional export (e.g., log exfiltration to a monitoring vault).

Limitations in modern cross‑domain data exchange

• No native acknowledgements/handshakes: Modern transports (TLS, HTTP/2, MQTT, OPC UA, gRPC) rely on bidirectional control. Diodes require special proxies or protocol downgrades, introducing reliability gaps and new attack surfaces.

• Poor data minimization & policy dynamics: Static rules; difficult to implement attribute‑based, purpose‑limited, or time‑bound access without complex, proprietary CDS (cross‑domain solution) stacks.

• Limited revocation/consent changes: Once data crosses, recalling or expiring it requires manual coordination rather than built‑in contract enforcement.

• Integrity & provenance gaps: Diodes do not inherently provide cryptographic lineage, signer identity, or tamper‑evident audit trails.

• Scalability & agility: Each new data product, partner, or schema change demands custom engineering and certification cycles.

• Operational overhead: Managing format conversions, store‑and‑forward buffers, and monitoring across diode boundaries increases MTTR and cost.

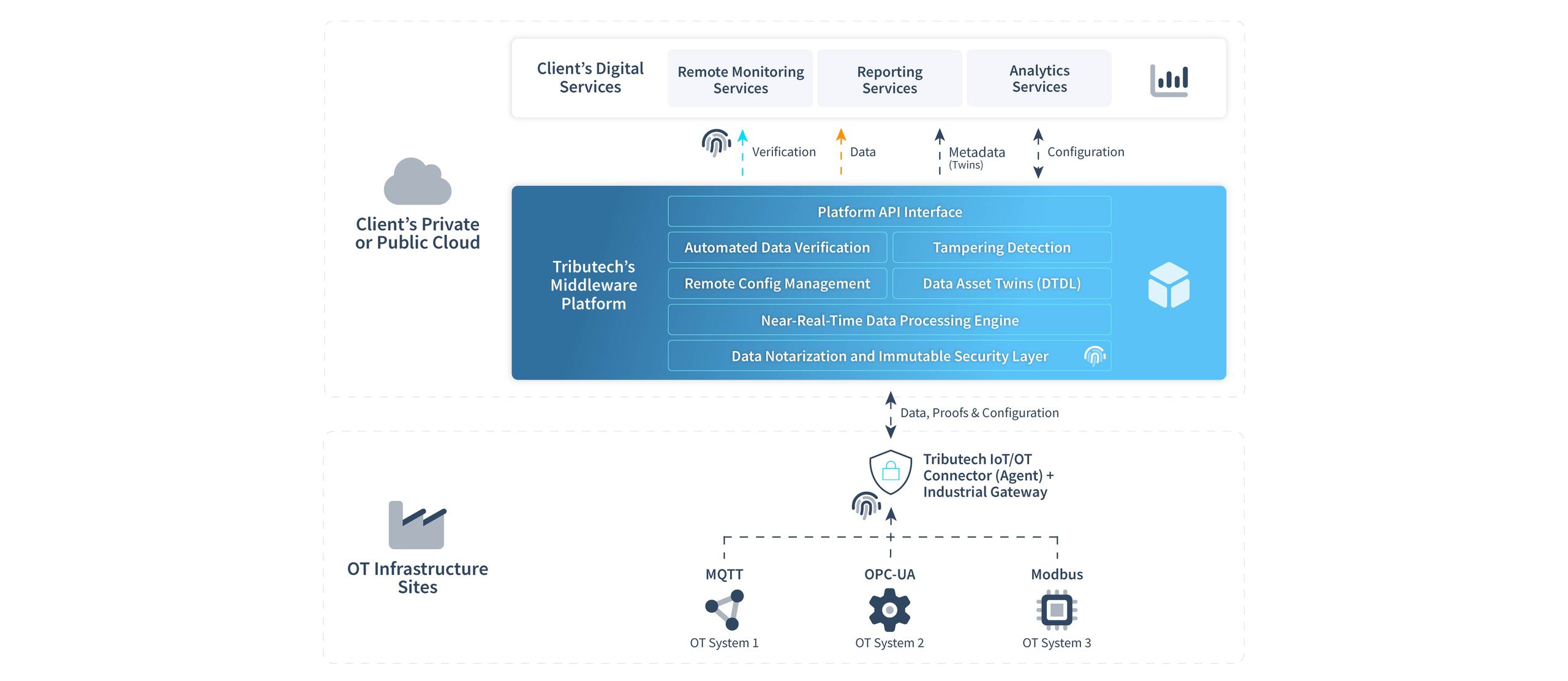

Tributech Approach

Tributech implements a zero-trust, data-centric security model designed for governed, cross-domain collaboration. All parties, including devices and services, are cryptographically identified, and connections use mutual TLS and signed payloads to ensure strong identity and mutual authentication.

Through digital twin-based data contracts, Tributech defines which data is shared, its semantics, and the corresponding protocol mappings. This enables selective data sharing, version control, and predictable integration.

Security is enforced end-to-end, with encryption in transit and at rest, while each dataset or event is signed and hashed to maintain provenance and integrity. A tamper-evident audit trail records data integrity across its lifecycle.

Tributech provides bidirectional reliability with acknowledgements, flow control, retries, and health telemetry to ensure predictable service levels even across lossy or constrained links. It is interoperable with standard industrial and cloud protocols without requiring one-way workarounds.

Finally, Tributech supports fine-grained, policy-driven authorization, allowing organizations to control who can access which data, for what purpose, and for how long.

Security Architecture (Overview)

Identity & Trust Establishment: Tributech uses mutual TLS with managed certificates and keys for devices and services. Hardware-backed keys and attestation are optionally supported to strengthen trust establishment.

Authorization & Policy Enforcement: Policies are defined centrally and enforced in a distributed manner at the edge and domain boundaries. The system supports attribute-, role-, and context-aware decisions, for example based on partner identity, purpose, site, or time window.

Data Protection: All communication channels are encrypted, and data encryption at rest is managed as part of the platform. Selective disclosure is possible based on integrations and governance rules.

Integrity, Provenance & Audit: Data products and events are cryptographically signed, and their hashes recorded for tamper evidence. An immutable audit trail maintains integrity and authenticity across the data lifetime, supporting forensics and regulatory compliance.

Segmentation & Isolation: Tributech uses logical trust zones and least-privilege service accounts to prevent lateral movement between domains.

Monitoring & Response: The system provides built-in metrics and policy hit/miss telemetry to support observability and response.

For a closer look at how these identity and attestation mechanisms apply to devices that sit outside enterprise networks, read Off-Network IoT Devices & How Tributech Can Help.

Reliability & Performance

• Bidirectional acknowledgements ensure end‑to‑end delivery guarantees (at‑least‑once/exactly‑once patterns where supported).

• Back‑pressure & rate‑limiting protect upstream systems and prevent domain saturation.

• Streaming & batch modes for low‑latency telemetry and scheduled extracts.

• Dynamic protocol mapping allows systems to envolve during operation without service interruption.

Compared to diodes: No protocol downgrades or UDP‑only fallbacks; fewer fragile middleboxes; simpler Service Level Objectives (SLO).

Governance & Compliance

Tributech ensures governed data exchange through digital twin–based data contracts that define the scope, format, and collection rules for every cross-domain interaction. These contracts establish clear boundaries for what data can be shared and under which conditions, providing a transparent and enforceable framework for collaboration. The platform’s comprehensive audit capabilities maintain full traceability of data integrity, authenticity, and configuration history within the digital twin graph. This guarantees that every change and transaction can be verified, supporting regulatory compliance and forensic analysis across the data lifecycle.

Interoperability & Integration

Tributech's Middleware integrates seamlessly with common industrial protocols and enterprise or cloud environments, eliminating the need for specialized diode proxies or custom middleware. Solution onboarding is simplified through standard identity federation and reusable templates, allowing faster deployment and consistent security alignment across systems. By reducing the need for bespoke cross-domain engineering and repeated security recertifications for each modification, Tributech enables more agile, reliable, and cost-efficient integration.

Total Cost of Ownership (TCO)

• Lower integration cost: No need for dual stacks, custom serializers, or diode‑compatible gateways.

• Operational efficiency: Unified monitoring, consistent policy engine, fewer one‑off exceptions.

• Change agility: Faster onboarding of new sites and data products; reduced re‑certification cycles.

Want to have a deeper look at how verifiable data provenance creates tangible business value and return on investment? The Business Case for Data Notarization: Turning Trust into ROI.

Comparative Summary

Reference Architectures (Typical)

1. Plant → Enterprise (Operational KPIs): Signed KPI streams ; acknowledgements ensure reliable delivery; zero‑trust communication prevents cross‑domain pivoting.

2. On‑premise ↔ Cloud Analytics: Encrypted data products to cloud; model feedback/alerts return via governed control channel; no special diode proxies required.

3. Enterprise ↔ Strategic Partner: Bidirectional sharing of product telemetry; time‑boxed partner access with revocation; full audit for commercial agreements.

Why Tributech is Better for Cross‑Domain Data Transfer & Security (in practice)

1. Security that travels with the data (provenance, identity, policy) rather than relying solely on physical one‑way constraints.

2. Operational reliability via acknowledgements, retries, and health signaling, without brittle protocol workarounds.

3. Governed sharing that enforces least privilege, purpose limitation, and time‑boxed access, continuously auditable.

4. Agility & scale to onboard new partners and data products without hardware changes or bespoke CDS gateways.

5. Lower risk of silent failure; visibility and telemetry across the full exchange path.

6. No data conversions/tampering; no requirement to convert data into UDP traffic, making data more reliable when utilised outside of the OT environment.

Key Metrics & Outcomes (Illustrative)

• >90% reduction in custom gateway code vs. diode‑based CDS stacks.

• Weeks → days customer onboarding cycle time.

• Fewer incidents tied to protocol downgrades/UDP fallbacks.

• Complete audit coverage for data integrity and contract enforcement.

(Actual results depend on environment and scope.)

Summary

Optical data diodes remain valuable where absolute one‑way isolation is compulsory. For the broader set of cross‑domain data‑sharing requirements where reliability, data provenance, selective disclosure, revocation, and agility matter, Tributech provides a stronger, more complete, and more economical security posture. It safeguards not just the pathway but the data itself, enabling secure, governed collaboration across organizational and network boundaries.
